Bully Stik

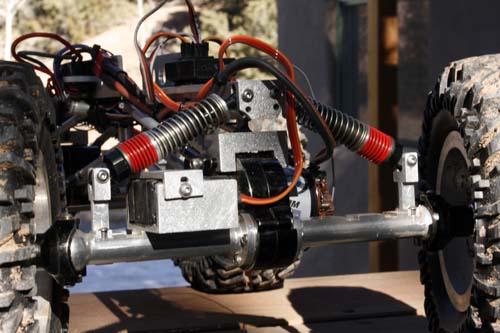

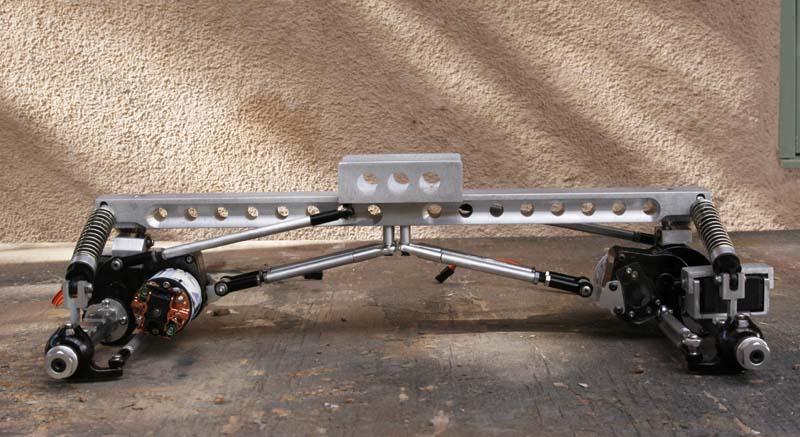

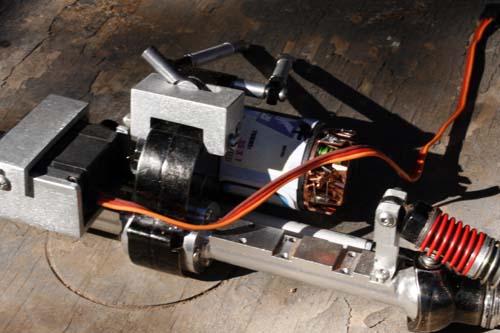

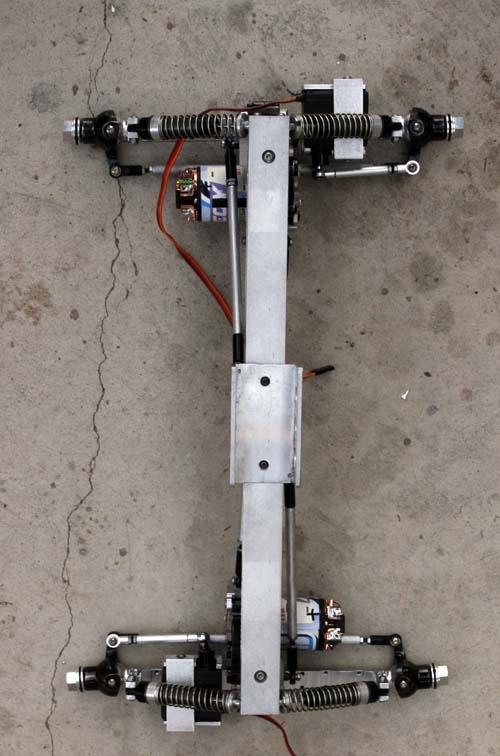

I got the idea from photos of an old "stick style" chassis. I made a pivot block using a rod end that attachs to the center of the chassis. Two lower links keep the axle from moving forward or back. Dual shocks per axle, and moa steering.

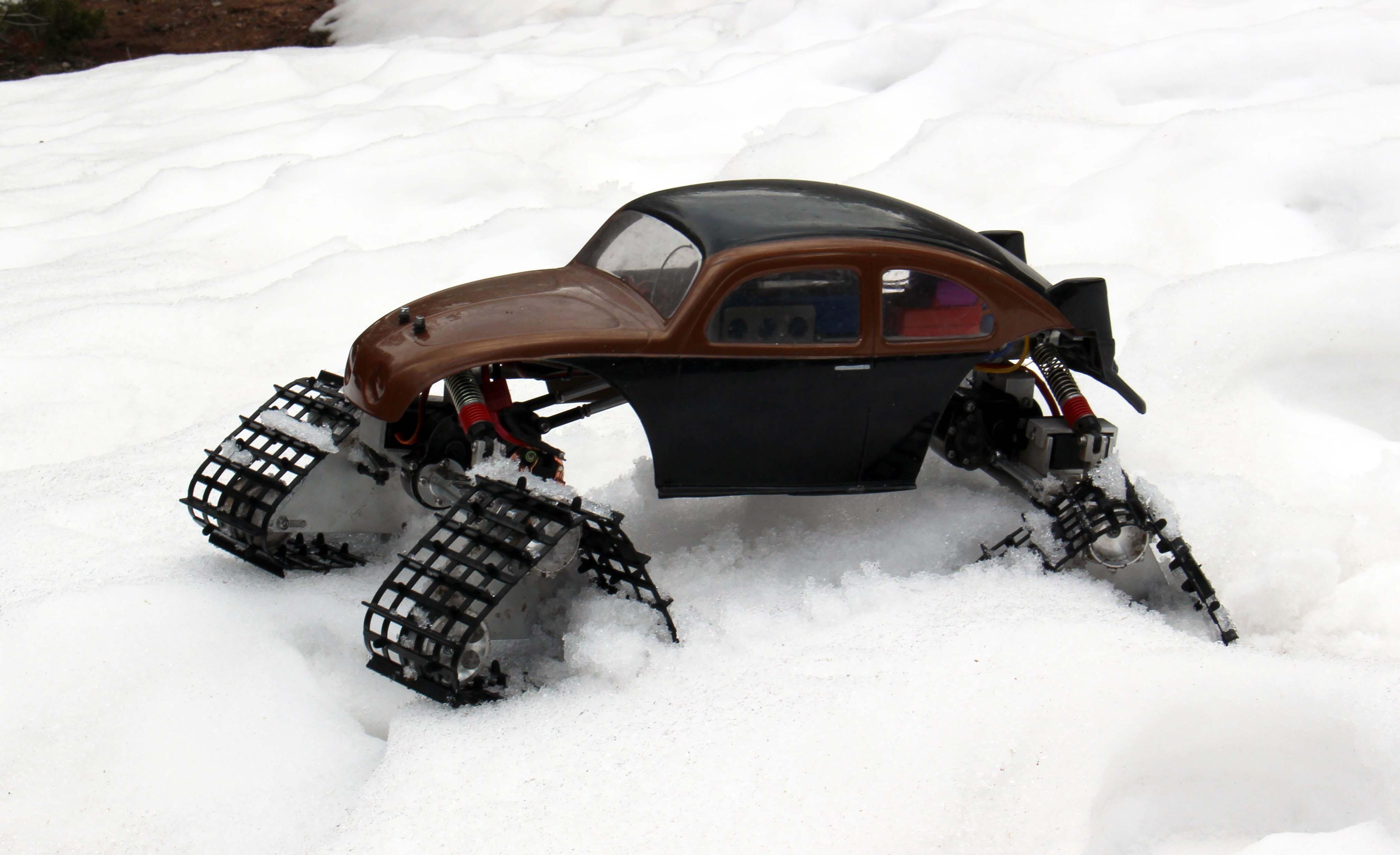

I made a fairly simple track set up. The drive sprocket is the same size as the one used on the Kyosho SR snowcat. The shaft is set up for a 8mm pin drive axle. The tracks are the stock Kyosho SR plastic tracks.

RC4WD Bully comp front axles

CE servos

Ingety 55T motors

Kyosho shocks & springs w/Tamiya M05 red helper springs

3.2" custom aluminum wheels

Imex Red Rock tires

Tekin FX esc
